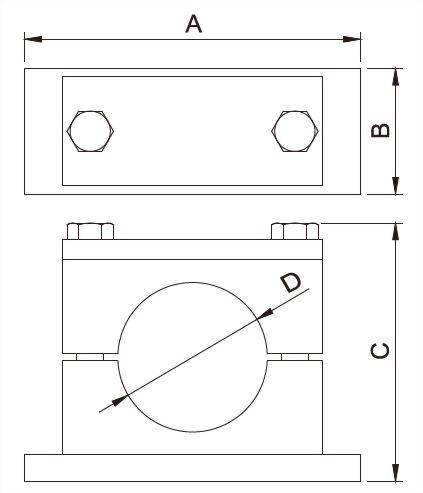

高压管夹
| 型号 | 长度A(mm) | 宽度B(mm) | 高度C(mm) | 直径D(mm) | 铁管牙 | 净重(g) |
| 6A | 73 | 38 | 55 | 10.5 | PT1/8 | 372 |
| 8A | 73 | 38 | 55 | 13.8 | PT1/4 | 371 |
| 10A | 73 | 38 | 55 | 17.3 | PT3/8 | 370 |
| 15A | 86 | 39 | 75 | 21.7 | PT1/2 | 571 |
| 20A | 86 | 39 | 75 | 27.2 | PT3/4 | 570 |
| 25A | 100 | 39 | 87 | 34.0 | PT1 | 678 |
| 32A | 100 | 39 | 87 | 42.7 | PT1 1/4 | 666 |
| 40A | 150 | 50 | 123 | 48.6 | PT1 1/2 | 1667 |
| 50A | 150 | 50 | 123 | 60.5 | PT2 | 1656 |
| 65A | 200 | 75 | 154 | 76.3 | PT2 1/2 | 3470 |
| 80A | 200 | 75 | 154 | 89.1 | PT3 | 3432 |
